CHZ - 产品描述

CHZ tooling kit (cooling through the spindle) has been designed for the horizontal milling and boring machines also for floor type horizontal boring mills and machining centres of TOStec series as an item of the optional accessories. It serves for bringing of coolant to the cutting edge through outside piping ended up with nozzles. Taps control the volume of coolant manually. The on/off function is controlled either manually or through the NC.

Technical specifications

Technical specifications
Horizontal milling and boring machines (CHZ 13)
Main tank capacity dm3 200
Coolant pump motor power kW 0,8
Coolant pump rated pressure MPa 0,3
Coolant pump delivery 1/min 32
Floor type horizontal boring mills (CHZ 130-150)
Main tank capacity dm3 900
Coolant pump motor power kW 2,2
Coolant pump rated pressure MPa 0,43
Coolant pump delivery 1/min 60
Machining centres TOStec
Main tank capacity dm3 900
Coolant pump motor power kW 2,2
Coolant pump rated pressure MPa 0,3
Coolant pump delivery 1/min 50

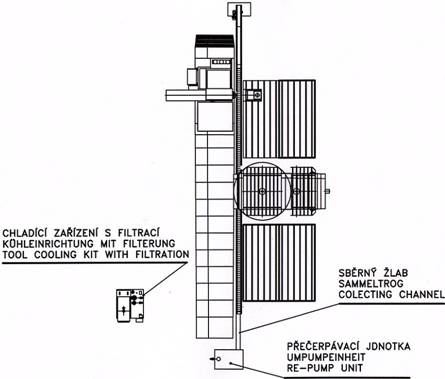

Fig. Design of the CHZ 130-150
