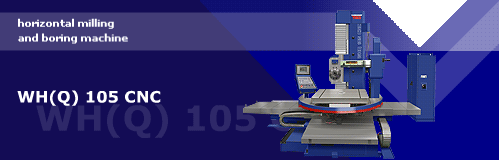

基本技术参数
| 基本技术参数 |
| Workspindle dia |
mm |
105 |
| Spindle taper |
ISO 50 |
| Spindle speed range (N) |
RPM |
10 - 2 300 |
| Spindle speed range (R) |
RPM |
10 - 3 300 |
| Spindle speed range (R4) |
RPM |
10 - 4 000 |
| Main motor power |
kW |
28 |
| Table cross travel X |
mm |
1 800 |
| Headstock vertical travel Y |
mm |
1 250, 1 600 |
| Table longitudinal travel Z |
mm |
1 250 |
| Spindle stroke W |
mm |
630 |
| Feeds X, Y, Z, W |
mm.min-1 |
2 - 5 000 |
| Rapid traverse |
| - X, Y, Z |
mm.min-1 |
10 000 |
| - W |
mm.min-1 |
8 000 |
| - B |
min-1 |
2 |
| Minimum height of the spindle axis above table |
mm |
0 |
| Maximum table load |
kg |
5 000 |
| Table clamping surface |
mm |
1 400 x 1 400,
1 400 x 1 600 |
| T-slots on the table |
| - dimension |
mm |
22H8 |
| - pitch |
mm |
160 |
| - number |
9 |
| |
| Farther specification |
| Hydraulic circuits operational pressure |
MPa |
7,1 - 7,8 |
| Compressed air source output requirements |
| - pressure |
MPa |
0,6 |
| - volume |
l.sec-1 |
18 |
| Mains voltage / frequency |
V / Hz |
3 x 400/50,
3 x 400/60 |
| Control voltage |
V= |
24 |
| Total power consumption |
kVA |
52 |
| Machine weight incl. electric cabinet |
kg |
17 600 |
| Operator site noise level "A" |
dB(A) |
80 |
| |
| Automatic tool change (ATC) equipment |
| Quantity of pockets in magazine |
40, 60 |
| Pitch of pockets in magazine |
mm |
130 |
| Tool dia max. |
| - full magazine |
mm |
125 - 150 |
| - adjacent pockets free |
mm |
320 |
| Dia max. of a special flat tool |
mm |
390 (600) |
| Tool length max. |
mm |
500 |
| Tool weight max. |
kg |
25 |
| Total weight of tools in magazine |
kg |
750 |
| Imbalance of tools in magazine max. |
kg |
150 |
| Tool change time |
sec |
20 |
|
|
