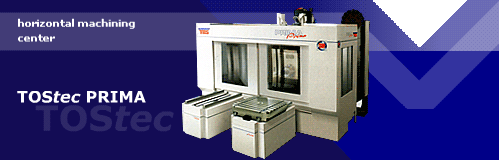

TOStec PRIMA - 基本技术参数
| HEADSTOCKS |
HEADSTOCK WITH TRAVELING SPINDLE |
| Spindle diameter |
mm |
100 |
| Spindle taper |
|
ISO 50, HSK A63 |
| Range of spindle speeds |
RPM |
10 - 5,000 |
| Main motor power, rated |
kW |
22 |
| Spindle stroke W |
mm |
500 |
| HEADSTOCK WITH THE INTEGRATED NON-TRAVELING ELECTRIC SPINDLE |
| Maximal spindle speeds |
RPM |
24,000* |
| HEADSTOCK WITH THE HUI 50 INTEGRATED MILLING HEAD |
| Range of spindle speeds |
RPM |
10 - 3,000 |
| Maximal allowable transmitted output |
kW |
22 |
| Max. permissible torque at spindle |
Nm |
770 |
| Positioning increment in both dividing planes |
Deg |
2.5° |
| HEADSTOCK WITH INTEGRATED FORK HEAD WITH ELECTRIC SPINDLE HV2/E-H |
| Maximal spindle speeds |
RPM |
10,000, 20,000 |
| Maximal power |
kW |
28, 43 |
| Maximal permissible torque at spindle |
Nm |
90, 60 |
| COLUMN |
COLUMN |
| Headstock vertical travel Y |
mm |
1,000, 1,300 |
| Column longitudinal travel Z |
mm |
1,600, 2,000 |
CLAMPING
TABLES |
ROTARY TABLES |
| Table clamping surface |
mm |
1,000 x 1,250 |
| Max. table load |
kg |
5,000 |
| Table cross travel X |
mm |
1,600, 2,000 |
| ROTARY TABLE ADOPTED FROM OPTIMA TYPE |
| Table clamping surface |
mm |
1,250 x 1,250,
1,250 x 1,600 |
| Max. table load |
kg |
10,000 |
| Table cross travel X |
mm |
2,000, 3,000 |
| FEEDS |
FEEDS |
| Rapid traverse X, Y, Z, W |
m.min-1 |
30 |
| Rapid traverse B |
RPM |
6.5 |
| Working feeds range X, Y, Z, W |
m.min-1 |
1 - 20,000 |
| Working feeds range B |
RPM |
0.003 - 1.5 |
* the value of power, torque and execution of taper cavity of electric spindle will be defined according to technological need |
|
|
|
Headstock with Traveling Spindle
|
|
|
|
Headstock with the Integrated Non-Traveling Electric Spindle
|
|
|
|
Headstock with the HUI 50 Integrated Milling Head
|
|
|
|
Headstock with Integrated Fork Head with Electric Spindle HV/E-H
|
|
