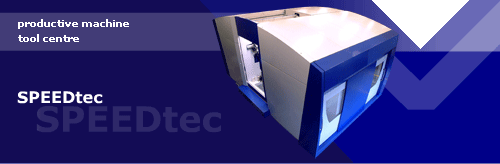

SPEEDtec - 基本技术参数
Double of spindlestocks
| Clamping taper |
|
HSK A 100 |
| Range of spindle head rotations |
1/min |
10 - 12000 |
| Maximal transmitted power |
kW |
25 |
| Maximal torque moment on the spindle |
Nm |
160 |
Value of groups transform
| Horizontal column traverse X1, X2 |
mm |
1250 |
| Vertical headstocks traverse Y1, Y2 |
mm |
1000 |
| Horizontal cross ram movement Z1, Z2 |
mm |
600 |
Feeds
| Rapid feed of linear coordinates |
m/min |
up to 40 |
| Range of working feeds of linear coordinates |
mm/min |
1-20 000 |
| Acceleration of linear coordinates |
m/s2 |
5 |
| Working feed of axis B |
1/min |
6,5 |
| Rapid speed of axis B |
1/min |
20 |
Automatically tool exchange
| Chain magazine |
Number of storage places |
2x 40 |
| Time of tool exchange (tool – tool) |
s |
6 |
| Max. tool diameter |
mm |
130 |
| Max. tool length |
mm |
300 |
| Max. tool weight |
kg |
15 |
Automatically palette exchange
| Palette clamping surface |
1. square |
mm |
1000x1000 |
| 2. rectangular |
mm |
1000x1250 |
| Number of palettes in the system |
number |
2, 3, 4 |
| Max. work piece weight |
kg |
4000 |
| Number of clamping slots |
number |
9 |
| Pitch of clamping slots |
mm |
100 |
| Dimension of clamping slots |
mm |
22H8 |
| Time of palette exchange |
s |
82 |
|
|
