Technical specifications

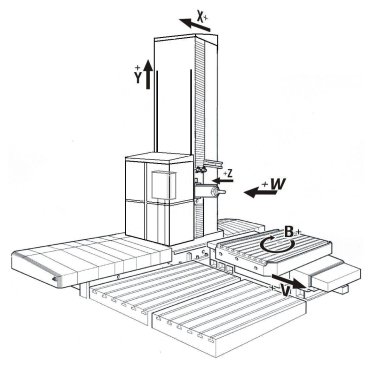

| Machine groups travel |
| Column transverse travel X |
mm |
5,000 - 27,000 (2,000) |
| Headstock vertical travel Y |
mm |
2,000 - 4,500 (500) |
| RAM stroke Z |
mm |
1,000 |
| Spindle stroke W |
mm |
700; 800 |
| Headstock |
|
|
WRD 130 |
WRD 150 |
| Spindle diameter |
mm |
130 |
150 |
| Spindle taper |
ISO 50 |
| RAM size |
mm |
450 x 450 |
| Spindle speed range |
R.P.M. |
10 - 3,000 |
10 - 2,500 |
| Spindle speed range* |
R.P.M. |
10 - 3,500 |
10 - 2,800 (3,000) |
| Main motor power (S1 / S6-60) |
kW |
37 / 46 |
51 / 65 |
| Spindle torque, rated (S1) |
Nm |
2,535 |
2,460 |
| Spindle torque max. (S6-60) |
Nm |
3,152 |
3,138 |
| Feeds |
| Feed range X, Y, Z, W |
mm.min-1 |
1 - 8,000 |
| Rapid traverse - X |
mm.min-1 |
20,000 |
| Rapid traverse - Y |
mm.min-1 |
16,000 |
| Rapid traverse - Z, W |
mm.min-1 |
12,000 |
| Max. feed forces |
| - in axes X, Y, Z, W |
kN |
40 |
* option |
|
