Technical specifications

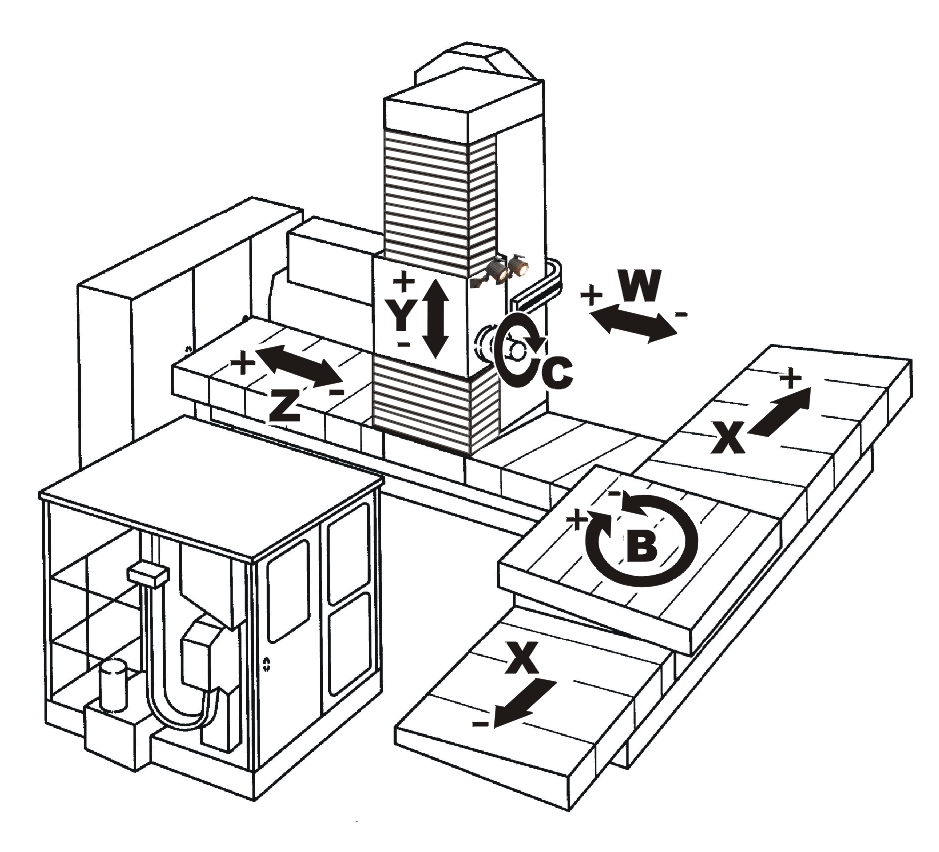

| Machine groups travels |
| Table transverse travel X |
mm |
2,000; 3,500; 4,000; 5,000; 6,000 |
| Headstock vertical travel Y |
mm |
2,000; 2,500; 3,000; 3,500 |
| Column longitudinal travel Z |
mm |
1,250; 1,600; 2,200; 3,200 |
| Spindle stroke W |
mm |
800 |
| Headstock |
| Headstock with travelling spindle |
|
"N" |
"R" |
| Spindle diameter |
mm |
130 |
130 |
| Spindle taper |
ISO 50 |
| Spindle speed range |
R.P.M. |
10 - 1,500 |
10 - 3,000 |
| Main motor power (S1 / S6-60) |
kW |
37 / 46 |
37 / 46 |
| Spindle torque, rated (S1) |
Nm |
3,322 |
2,502 |
| Spindle torque max. (S6 - 60) |
Nm |
4,132 |
3,111 |
| Headstock with non-travelling spindle |
| Spindle taper |
ISO 50 |
| Spindle speed range |
R.P.M. |
10 - 5,000 |
| Main motor power |
kW |
28 |
| Spindle torque, rated (S1) |
Nm |
1,018 |
| Spindle torque max. (S6 - 60) |
Nm |
1,265 |
| Headstock "15" |
| Spindle diameter |
mm |
150 |
| Spindle speed range |
R.P.M. |
10 - 3,000 |
| Main motor power (S1 / S6-60) |
kW |
46 / 55 |
| Spindle torque, rated (S1 / S6-60) |
Nm |
3,100 / 3,720 |
| Spindle stroke W |
mm |
900 |
| Table |
| Workpiece weight max. |
kg |
25,000 |
| Table clamping surface |
mm |
1,800 x 1,800 (2,200; 2,500) |
| Option design No. 1 |
kg / mm |
16,000 / 2,500 x 3,000 |
| Option design No. 2 |
kg / mm |
18,000 / 2,000 x 3,000 |
| Tilting table |
| Workpiece weight max. |
kg |
16,000 |
| Tilting range |
|
0 - 5° |
| Table clamping surface |
mm |
1,800 x 1,800 (2,200; 2,500) |
| Automatic pallet change |
| Workpiece weight max. |
kg |
16,000 |
| Pallet clampng surface |
mm |
1,800 x 1,800 (2,200; 2,500) |
| Number of pallets in system |
|
2 |
| Time of pallet change |
sec |
90 |
| Feeds |
| Feed range X, Y, Z, W |
mm.min-1 |
4 - 5,000 |
| Feed range B |
min-1 |
0,003 - 1,5 |
| Rapid traverse - Y, Z, W |
mm.min-1 |
10,000 |
| Rapid traverse - X = 2,000; 3,500 (S12) |
mm.min-1 |
10,000 |
| Rapid traverse - X = 2,000; 3,500 (S25) |
mm.min-1 |
8,000 |
| Rapid traverse - X = 4,000; 5,000; 6,000 |
mm.min-1 |
8,000 |
| Rapid traverse - B S12 / S25 |
min-1 |
2 / 1,5 |
|
|
