Accessories
FNK2-R
STANDARD ACCESSORIES:
| Chip pan |
| Clamping bolt for tools and millilng arbors |
| 1 pc Clamping limit 311 112328.000 (for pneumatic clamiping) |
| Short milling arbor ISO40 × 22 × 37 |
| Working space guard |
| Safety guard |
| Working space lighting |
OPTIONAL EXTRAS:
(delivered at an additional price)
| Horizontal head |  |
IFH 2 N |
| Support bearing |  |
LFH 2 N |
| Long milling arbor |  |
ISO40×16×320 |
| Universal dividing head |  |
DU 200A |
| Rotary table with indexing device dia |  |
250 |
| Machine vice |  |
125 |
| Swivelling vice | 125 | |
| Swivelling and tilting vice |  |
100 |
| Self-centering vice |  |
125 |
| Short milling arbors |  |
ISO40×16×29 |
| ... | |
ISO40×22×19 |
| ... | |
ISO40×22×37 |
| ... | |
ISO40×27×47 |
| ... | |
ISO40×32×60 |
| Reducing sleeves |  |
ISO40/ISO30 |
| ... | |
ISO40/Morse2 |
| ... | |
ISO40/Morse3 |
| Three-jaw drill chuck |  |
13-B12 |
| Drill chuck arbor | B12×2 | |
| Clamping bush |  |
ISO40×16 |
| Clamping bush | |
ISO40×28 |
| Transport wooden skids | 185×200 cm,Weight 50kg |
| Wooden transport base | 185×200 cm,Weight 140kg |
| Wooden crate | 193×208×191 cm,Weight 500 kg |

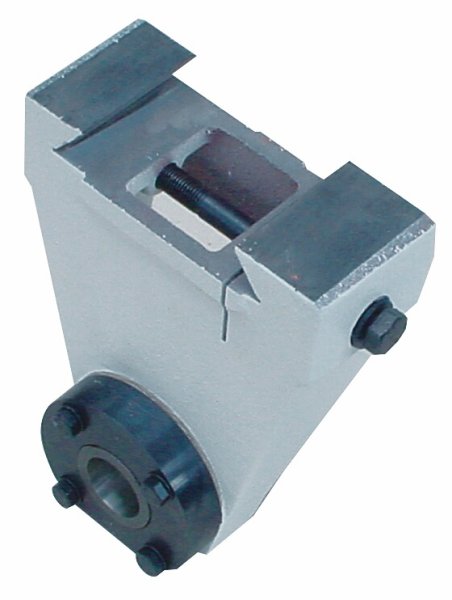

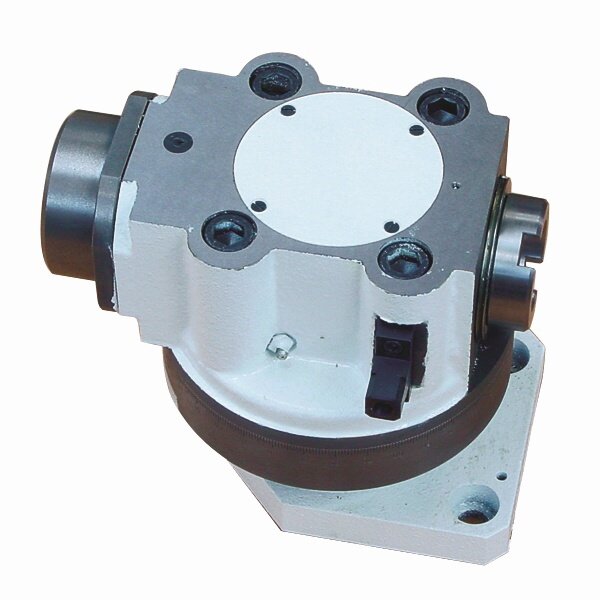

| Horizontal head IFH2N | Support bearing LFH2N | |
|---|---|---|
|
|
|
|
| Rotary table with indexing device dia 250 (more) | Universal dividing head DU200 (more) | |
|
|
|
|
| Swivelling and tilting vice 100 | Machine vice 250 | Swivelling vice 250 |
|
|
|
|
| Self-centering vice 250 | Clamping bush with one set of collets | Reducing sleeves ISO/ISO,ISO/Morse |
|
|
|
|
| Short milling arbors | Long milling arbors | |
|
|
|
